A “dead compressor” is often the symptom—not the root cause. At A/C Dr. Naz, we specialize in commercial HVAC diagnostics across the Seattle area, including West Seattle and high-demand commercial zones like Southcenter Mall.
With EPA Section 608 Universal Certification, every system is evaluated thoroughly before recommending replacement—saving businesses time, money, and unnecessary downtime.
Why Commercial AC Compressors Fail in Seattle Facilities?
Electrical vs. Mechanical Failures
In Seattle’s commercial environments—from retail centers near Southcenter Mall to office buildings in West Seattle—compressor failures are often caused by electrical faults, not mechanical breakdown.
Common causes include:
- Voltage imbalance
- Failed contactors
- Weak or drifting capacitors
The Risk of Single-Phasing in 3-Phase Systems
Single-phasing is one of the most destructive issues in commercial HVAC systems.
This occurs when:
- A contactor fails to deliver all three phases
- Wiring becomes loose or damaged
- Electrical components degrade over time
⚠️ A 3-phase compressor can burn out in minutes under these conditions.

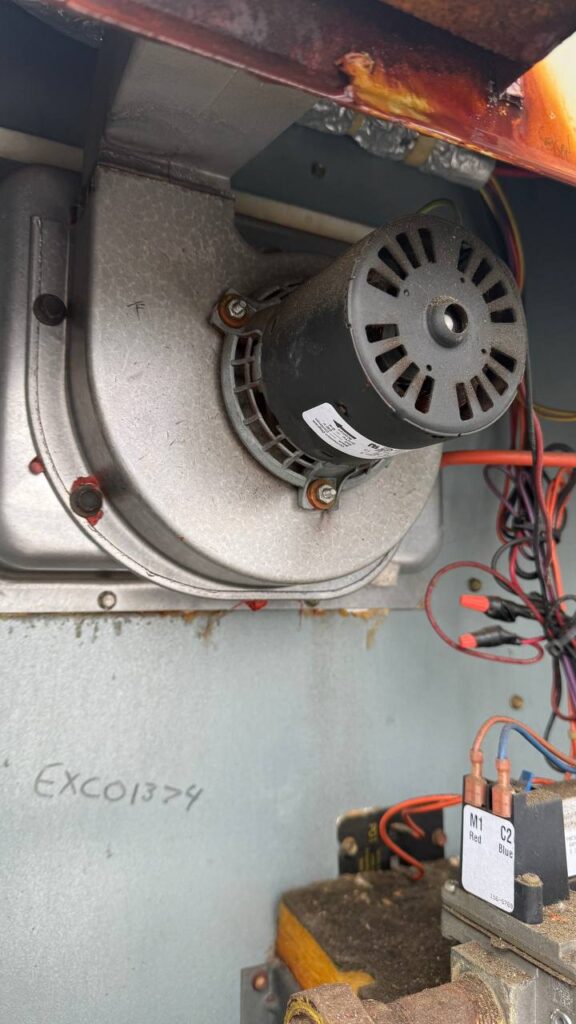

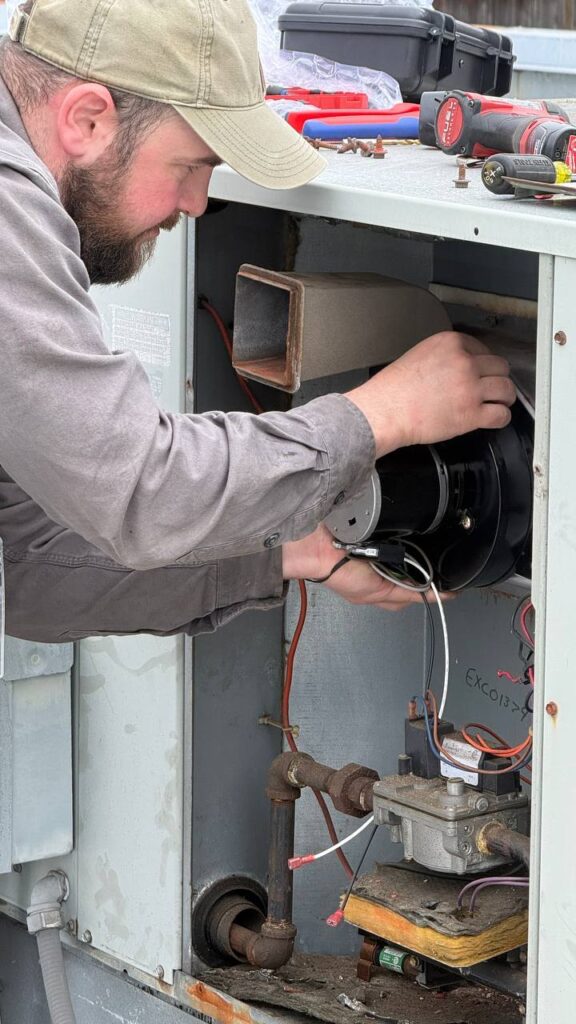

3-Phase Contactor and Capacitor Integrity
Contactor: The “Heartbeat” of Your System
For commercial buildings across Seattle, especially high-traffic areas like Southcenter Mall, the contactor plays a critical role in system reliability.
We inspect for:
- Pitted or burned contacts
- Coil failure
- Incomplete phase delivery
Capacitor Drift Testing
Even a small drop in capacitor performance can lead to major problems.
- A 10% loss in microfarads can cause:
- Overheating
- Increased energy consumption
- Compressor failure
Routine testing is essential for businesses in West Seattle and surrounding areas where systems run heavily year-round.
Why Does My Commercial AC Unit Hum But Not Start?
A humming unit is a common issue we see throughout Seattle commercial properties.
Typical Causes:
- Failed start capacitor
- Seized compressor
- Contactor failure
- Single-phasing in 3-phase systems
In most cases, the system is energized but cannot generate enough torque to start.
Proper Compressor Replacement Standards
When replacement is necessary, proper procedures are critical.
500-Micron Vacuum Protocol
We follow industry-best practices:
- Evacuate system to 500 microns
- Remove moisture and contaminants
- Prevent acid formation
This is especially important in Seattle’s moisture-prone climate.
Case Study: RTU Heating Failure – Seattle
No Heat Call – Seattle Commercial Facility
A/C Dr. Naz responded to a no-heat service call in Seattle, serving a commercial client near a busy retail corridor.
Diagnosis

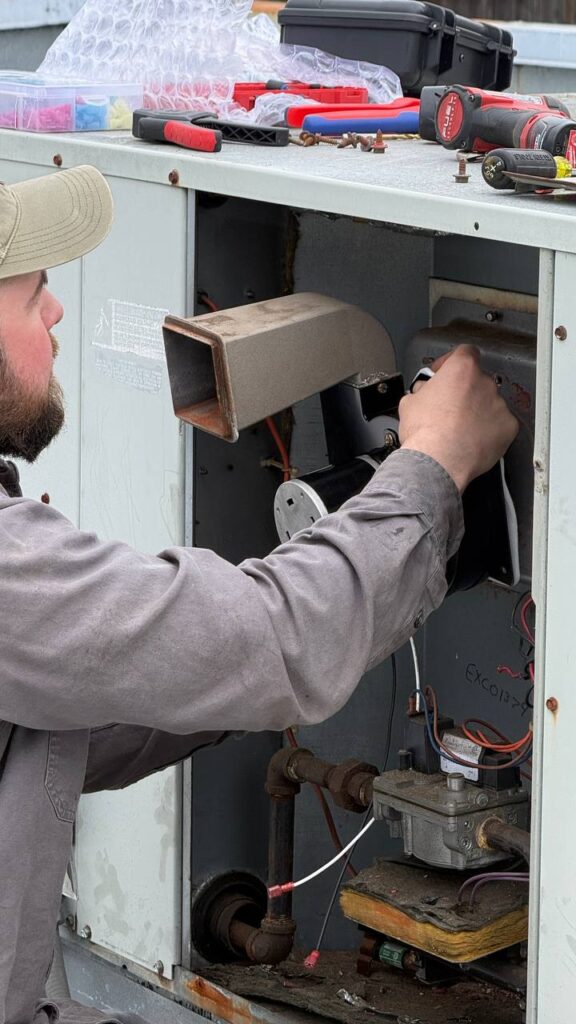

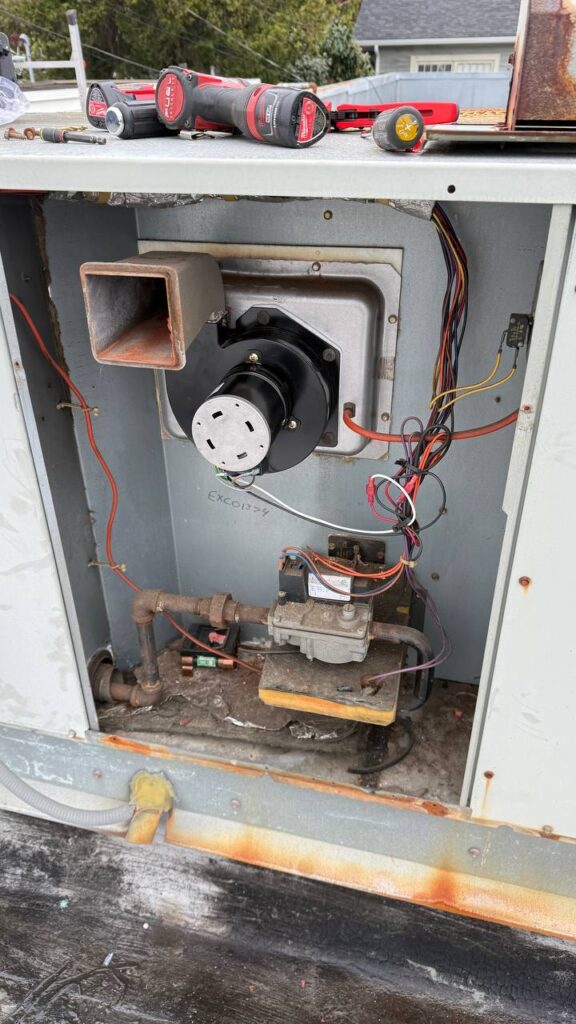

Inspection of the rooftop unit (RTU) revealed:
- Failed inducer motor assembly
- Heating cycle unable to start
Repair
- Replacement part ordered
- Installed on return visit
- System tested thoroughly
Result
- Heat restored successfully
- Full maintenance completed
- RTU operating at normal performance
Commercial HVAC Diagnostics in Seattle, West Seattle & Southcenter Mall Area
We provide expert diagnostics and repair for:
- Retail centers (including Southcenter Mall area)
- Office buildings in West Seattle
- Warehouses and mixed-use facilities
- Rooftop units (RTUs) and 3-phase systems
